Digital Multimeter Dc Ac Voltmeter

NEW Generation 600V Digital Multimeter Ture RMS AC DC NCV Smart Multimetro Tester Ohm Capacitance Hz Voltage Meter Voltmeter

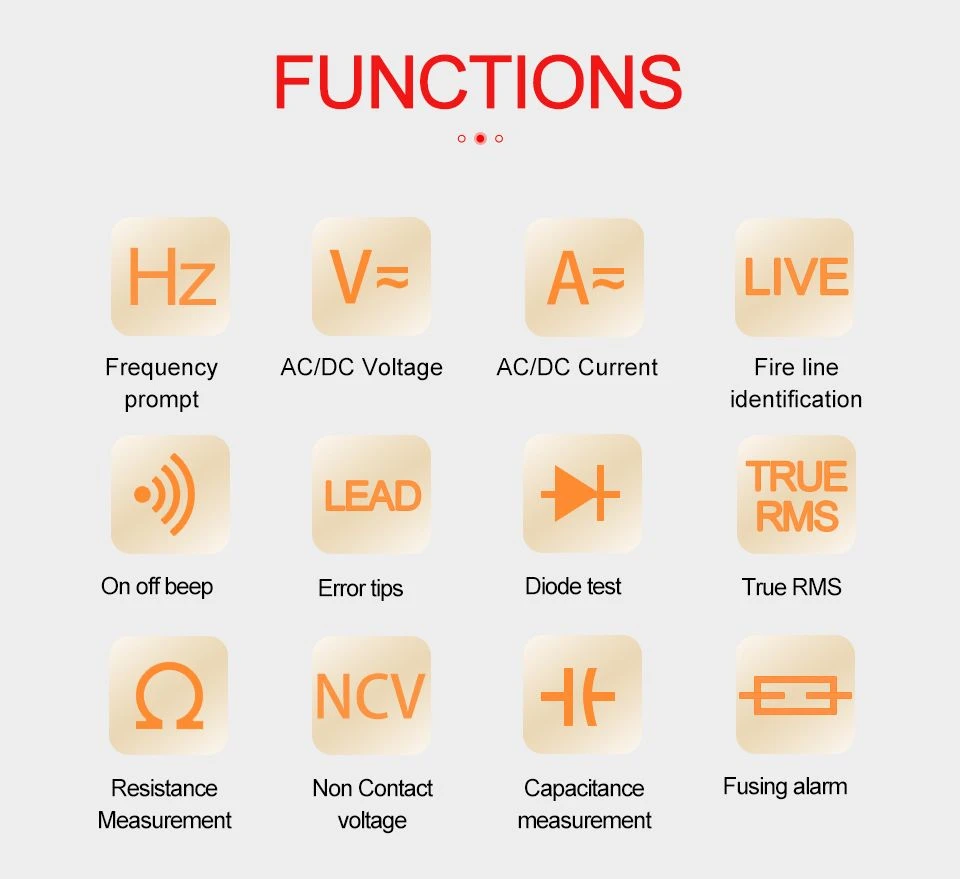

GVDA Digital Multimeter is an Professional Multimeter which can measure AC and DC voltage, AC and DC current, resistance, capacitance, continuity, diode, NCV,etc.; It is the best choice for professional electrician, engineer, electronic enthusiast or family use.

Features:

1.This is a high-performance, safe,reliable, high-precision, intelligent automatic range for measuring AC small current bit digital micro current meter.

2.The high-precision clearance gauge instrument head is accurately measured by exquisite casting process and reduces magnetic interference.

3.Large screen display is not ghosting, no reflection, clear handwriting, and readings.

4.One hand mastery, intelligent automatic range, simple and convenient.

5.Digital meter specially designed for you to care for unexpected harsh circuit maintenance and circuit testing.

Product Details

Model name: GD118B

DC Voltage: 60mV/600mV/6V/60V/600V ±(0.5 percent plus 3)

AC Voltage: 60mV/600mV/6V/60V/600V ±(1.0 percent plus 3)

DC Current: 6000uA/60mA/600mA ±(1.2 percent plus 5);

AC Current: 6000uA/60mA/600mA ±(1.5 percent plus 5);

Resistance:600/6k/60k/600kOHM ±(1.0 percent plus 5);

6m/60mOHM ±(1.5 percent plus 3)

Capacitance: 6nF/60nF/600nF/6uF/60uF/600uF ±(4.0 percent plus 5);

6mF/60mF ±(5.0 percent plus 5)

Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz/10MHz ±(1.0 percent plus 5)

Duty:1.0 percent -99.0 percent ±(3.0 percent plus 5)

Temperature :-401000 degree ; -40-1832 degree F 2 degree

Counts: 6000counts

Smart Function(AC/DC Voltage,resistance and continuity):yes

Auto Identification of current input:yes

Relative Measurement:yes

Max/Min/Avg.:yes

NCV/Live/Continuity test:yes(sound and light alarm)

Diode test:yes(sound alarm)

Bargraph/Data hold /True RMS:yes

Fuse Burning Prompt:yes

Input Jack LED indication:yes

Low battery indication:yes

Auto power off:yes

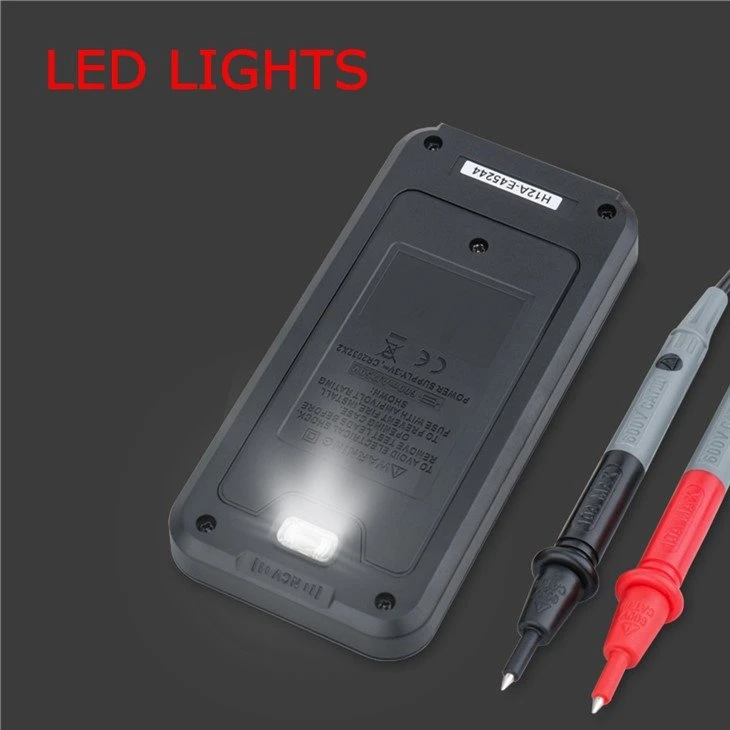

Flashlights:yes

Power supply:2x CR2302 Batteries (not include)

Product Size:113x68x19mm

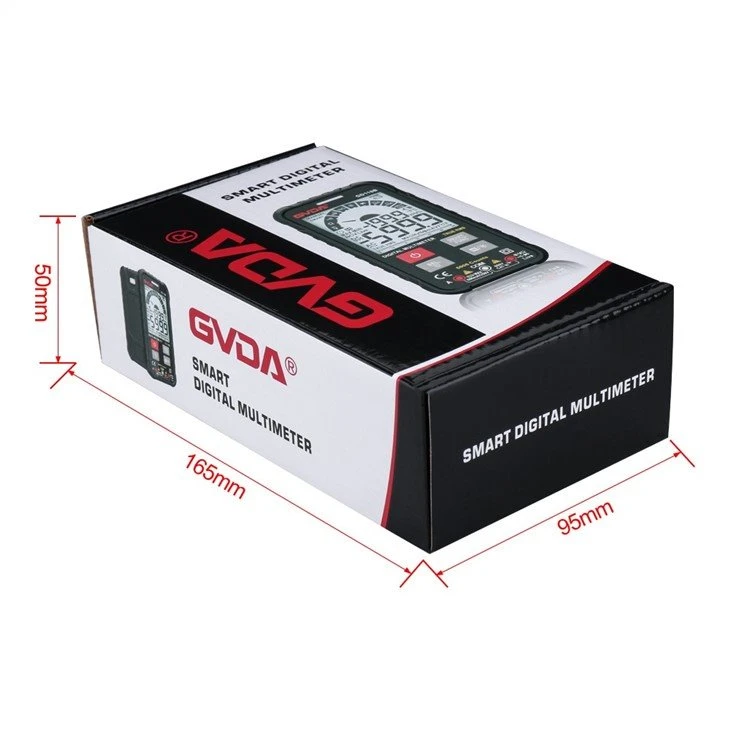

Package Size:170x95x50mm

Package Weight:275g

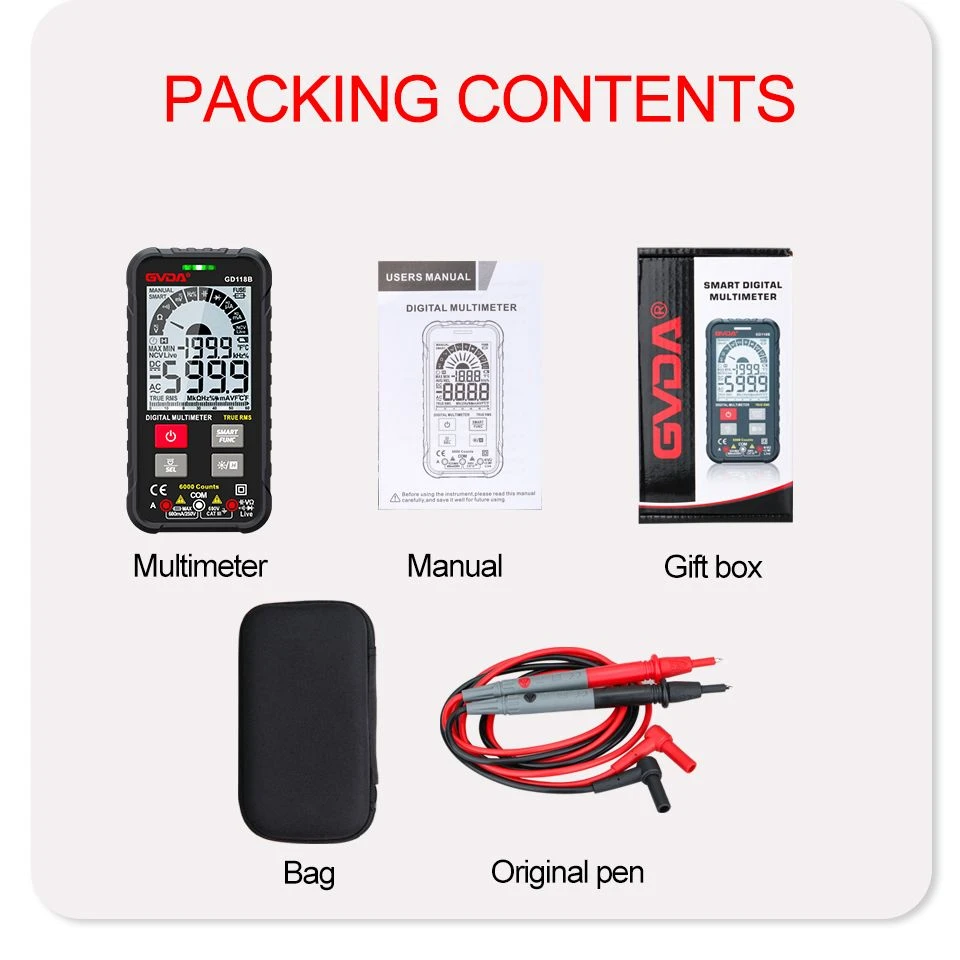

Packing Contents

1pc Multimeter

1pc pen cable

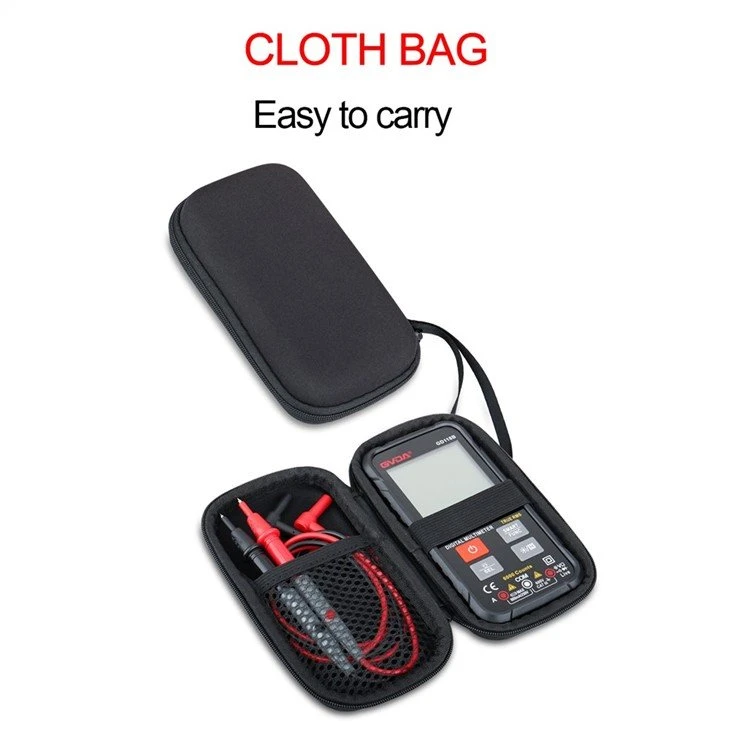

1pc cloth bag

1pc Thermocouple probe

Product Show:

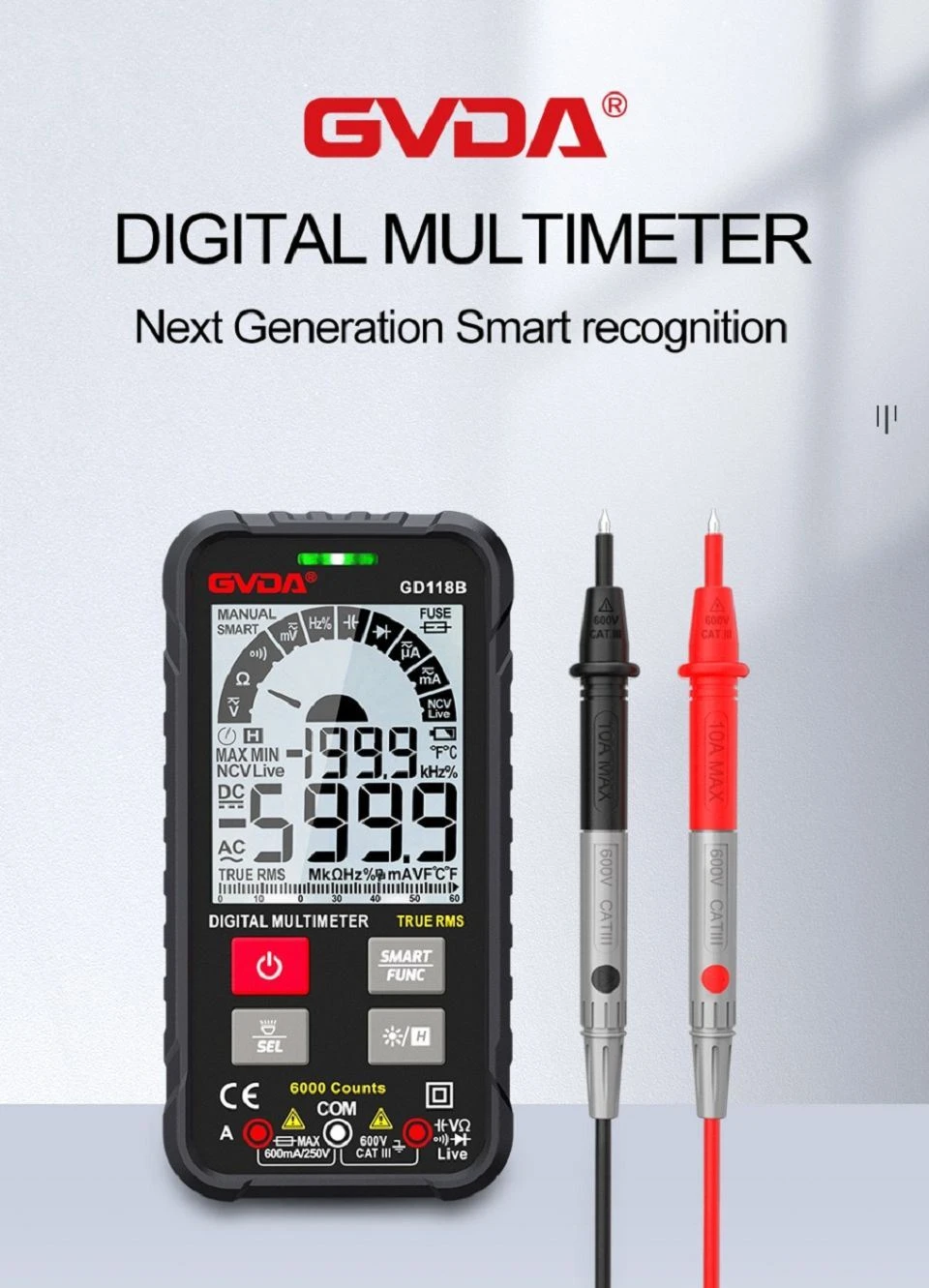

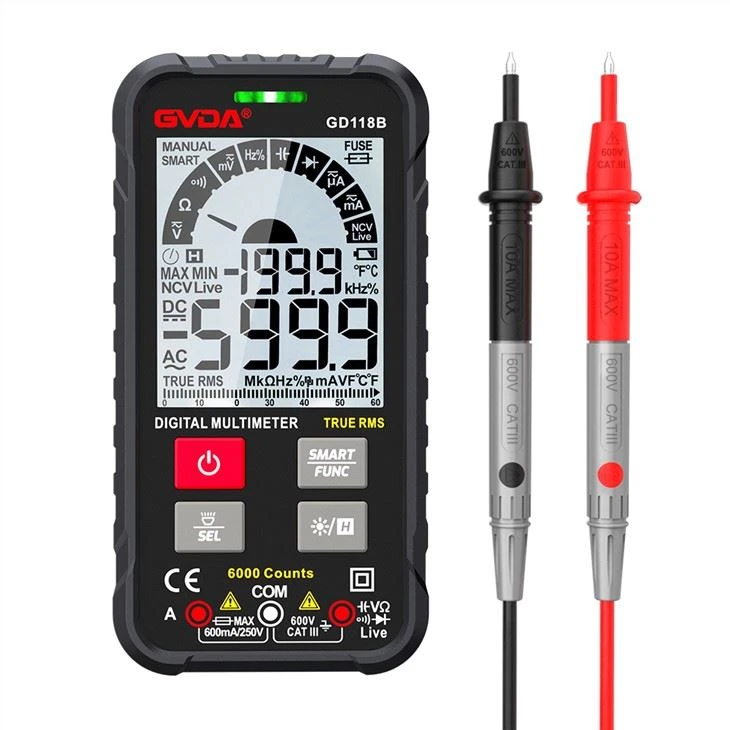

Digital multimeter dc ac voltmeter

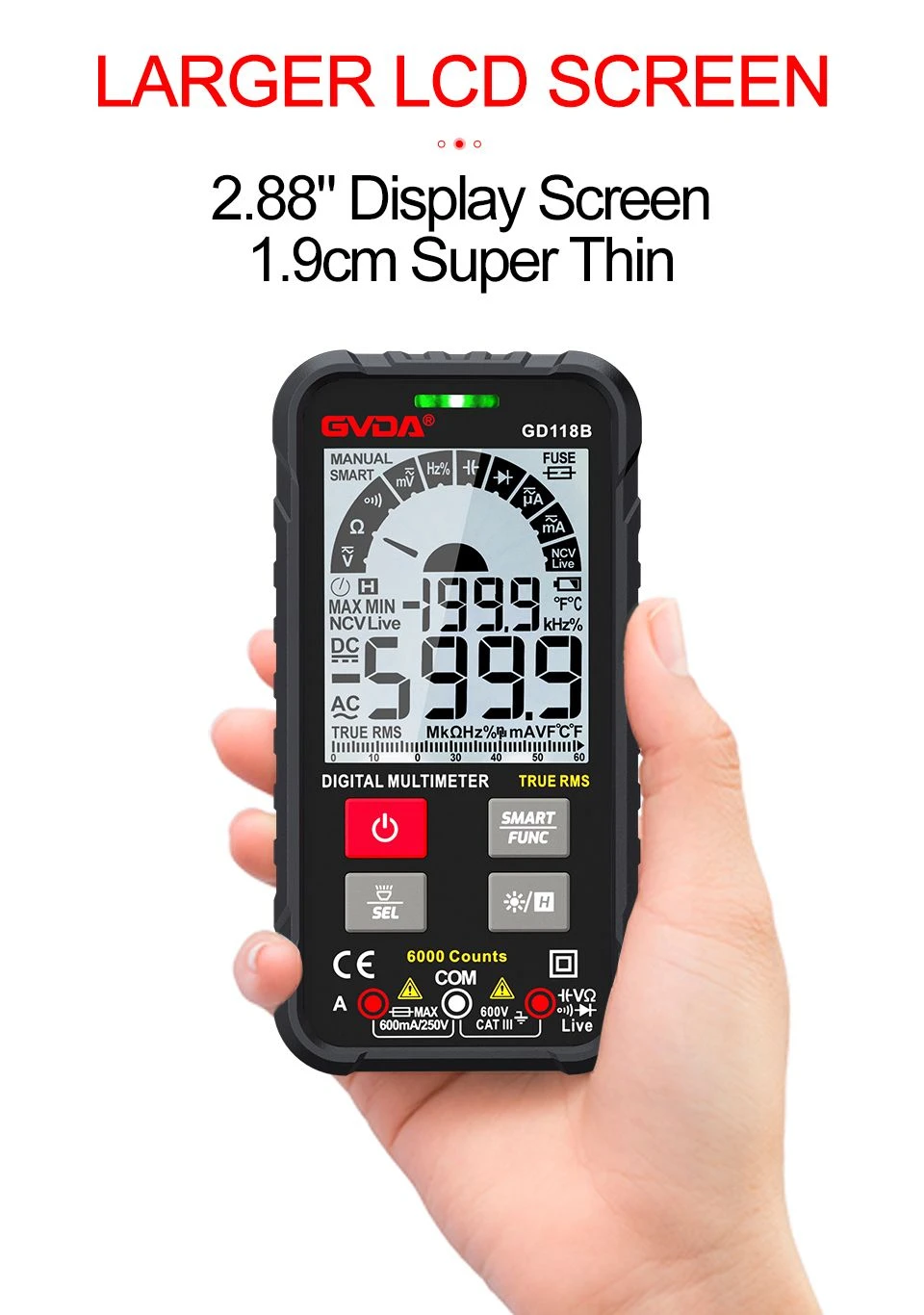

Larger LCD SCREEN

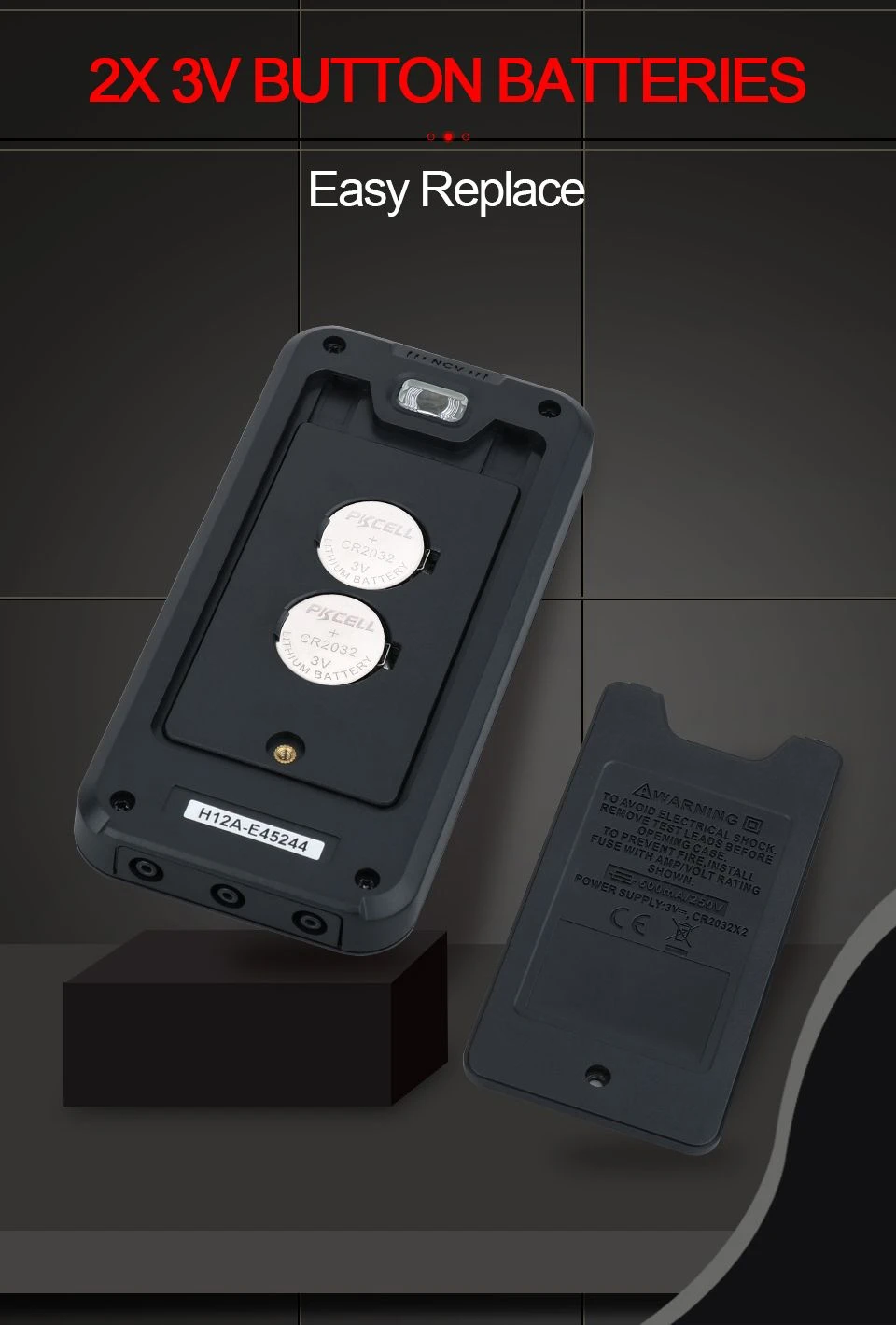

2PCS CR2032 Batteries (for choice)

Package Included:
